OData input

Description

The OData input transform enables you to query OData (Open Data Protocol) services. OData is an OASIS standard that defines a set of best practices for building and consuming RESTful APIs. For more information, visit the official OData Documentation.

This transform is an input transform: it issues GET requests against an Entity Set and streams each entity as a Hop row. JSON properties are mapped with an OData Path. Pagination follows @odata.nextLink (OData V4) and __next (OData V2), including relative next-link URLs.

The Connection, Query, and Fields values all accept Hop variables (${VARIABLE}).

Connection Options

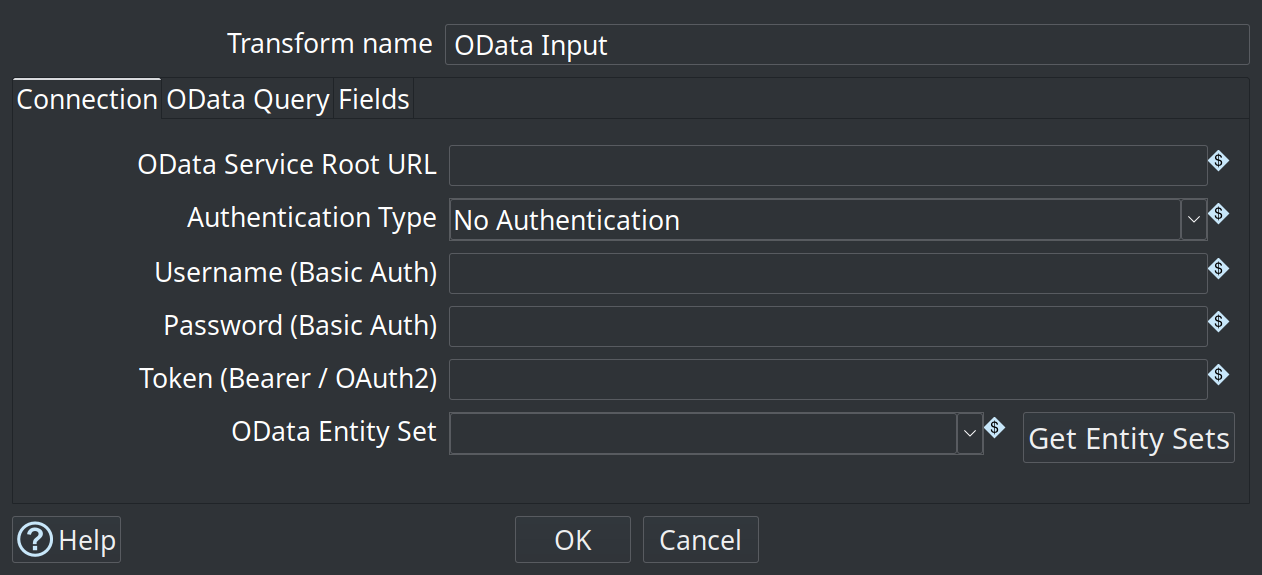

The Connection tab allows you to configure the service endpoint and optional credentials.

Option Description

Option	Description
Transform name	Name of this transform as it appears in the pipeline workspace.
OData Service Root URL	The base URL of the OData service, without the entity set name (e.g., `https://services.odata.org/V4/Northwind/Northwind.svc`). A trailing slash is optional.
Authentication Type	The authentication type to use: * `No Authentication`: Anonymous connection. * `Basic Authentication (Username / Password)`: HTTP Basic credentials. * `Bearer Token (Authorization Header)`: Sends `Authorization: Bearer <token>`.
Username (Basic Auth)	The username for Basic authentication.
Password (Basic Auth)	The password for Basic authentication.
Token (Bearer / OAuth2)	The bearer token value (without the `Bearer ` prefix).
OData Entity Set	The OData entity set to query (e.g., `Products` or `Customers`).
Get Entity Sets	Calls the service root URL and fills the Entity Set drop-down from the catalog (`value[].name` in V4; `d.EntitySets` or similar in V2).

Transform name

Name of this transform as it appears in the pipeline workspace.

OData Service Root URL

The base URL of the OData service, without the entity set name (e.g., https://services.odata.org/V4/Northwind/Northwind.svc). A trailing slash is optional.

Authentication Type

The authentication type to use:

* No Authentication: Anonymous connection. * Basic Authentication (Username / Password): HTTP Basic credentials. * Bearer Token (Authorization Header): Sends Authorization: Bearer <token>.

Username (Basic Auth)

The username for Basic authentication.

Password (Basic Auth)

The password for Basic authentication.

Token (Bearer / OAuth2)

The bearer token value (without the `Bearer ` prefix).

OData Entity Set

The OData entity set to query (e.g., Products or Customers).

Get Entity Sets

Calls the service root URL and fills the Entity Set drop-down from the catalog (value[].name in V4; d.EntitySets or similar in V2).

Query Options

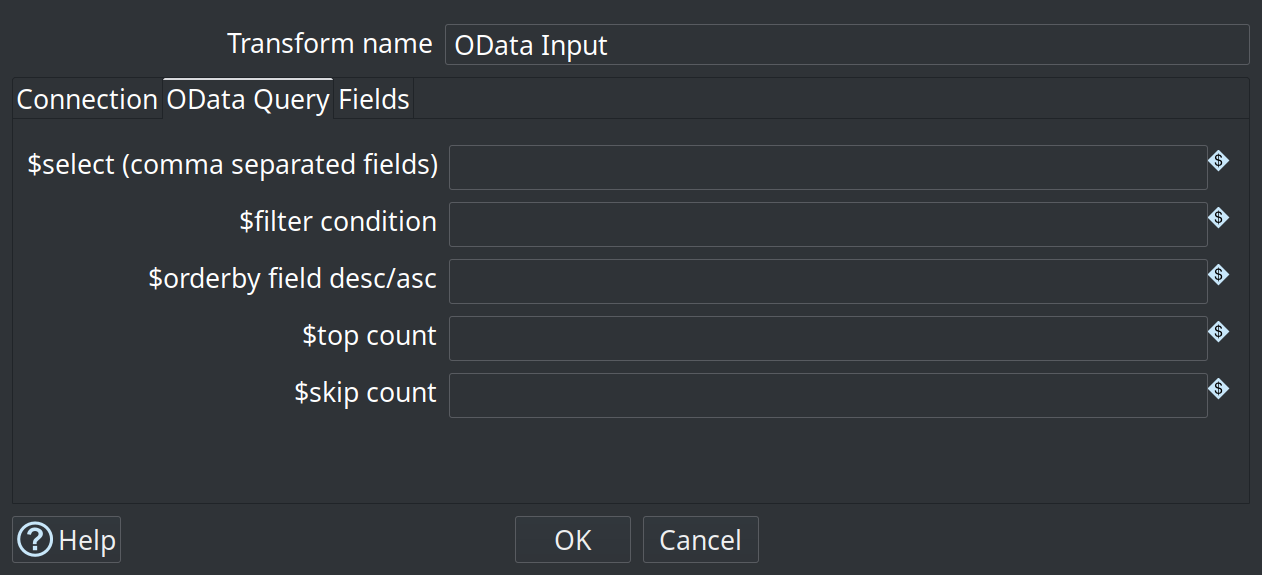

The OData Query tab appends standard OData system query options to the first request URL.

Option Description

Option	Description
$select	A comma-separated list of properties to select (e.g., `ProductID,ProductName`).
$filter	An OData expression to filter matching entities (e.g., `ProductID le 3` or `Discontinued eq false`).
$orderby	Specifies the sorting order of the results (e.g., `ProductName asc`).
$top	Limits how many entities the first request asks for (e.g., `50`). Later pages still follow the service `nextLink` if one is returned.
$skip	Specifies the number of entities to skip from the beginning of the list on the first request.

$select

A comma-separated list of properties to select (e.g., ProductID,ProductName).

$filter

An OData expression to filter matching entities (e.g., ProductID le 3 or Discontinued eq false).

$orderby

Specifies the sorting order of the results (e.g., ProductName asc).

$top

Limits how many entities the first request asks for (e.g., 50). Later pages still follow the service nextLink if one is returned.

$skip

Specifies the number of entities to skip from the beginning of the list on the first request.

There is no dedicated $expand, $count, or $search field. Complex nested collections are not exploded into extra rows.

Fields Mapping

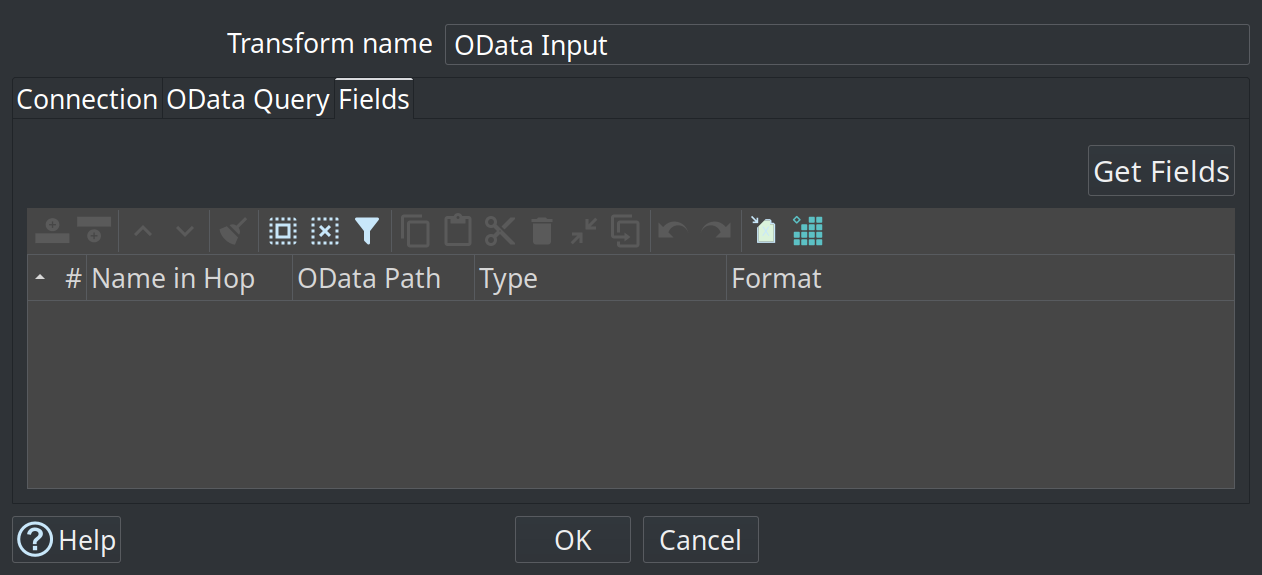

The Fields tab defines how properties in the returned OData JSON response map to Apache Hop row fields.

Option Description

Option	Description
Name in Hop	The name of the field as it will be produced in the Apache Hop pipeline. Variables in the name are resolved at runtime.
OData Path	Slash-separated JSON object path within one entity (e.g., `ProductName`, or `Address/City` for a nested object). Array indexes such as `AddressInfo/0/City` are not supported.
Type	The Hop data type: String, Integer, Number, Date, Boolean, or BigNumber. Integer is read as a Long and Number as a Double. Other types, including BigNumber, are read as text.
Format	Optional conversion mask for date or numeric fields. See Formatting numbers and dates.
Get Fields	Calls the service `$metadata` endpoint and populates the table from the selected Entity Set’s CSDL `Property` elements (not navigation properties). Edm integers map to Integer, decimals/doubles to Number, booleans to Boolean, and date/time types to Date.

Name in Hop

The name of the field as it will be produced in the Apache Hop pipeline. Variables in the name are resolved at runtime.

OData Path

Slash-separated JSON object path within one entity (e.g., ProductName, or Address/City for a nested object). Array indexes such as AddressInfo/0/City are not supported.

Type

The Hop data type: String, Integer, Number, Date, Boolean, or BigNumber. Integer is read as a Long and Number as a Double. Other types, including BigNumber, are read as text.

Format

Optional conversion mask for date or numeric fields. See Formatting numbers and dates.

Get Fields

Calls the service $metadata endpoint and populates the table from the selected Entity Set’s CSDL Property elements (not navigation properties). Edm integers map to Integer, decimals/doubles to Number, booleans to Boolean, and date/time types to Date.

OData date/time values that fail to parse are emitted as null and do not abort the pipeline. If you need the original timestamp, map the property as String.

Behaviour

Requests use Accept: application/json. Atom/XML payloads are not parsed as rows.
OData V4 responses use a value array. OData V2 uses d.results, a d array, or a single d object.
When a page includes @odata.nextLink or __next, the transform keeps fetching until the service stops paging. Relative next-link URLs are resolved against the previous request.
A non-200 HTTP status fails the transform.
Get Entity Sets and Get Fields can be used more than once in the same Hop Gui session.

Example

To query the public Northwind OData V4 service:

Set the Service Root URL to https://services.odata.org/V4/Northwind/Northwind.svc.
Click Get Entity Sets and choose Products, or type Products.
Open the Fields tab and click Get Fields, or add ProductID (Integer) and ProductName (String) yourself.
Optionally, on OData Query, set $select to ProductID,ProductName, $filter to ProductID le 3, $orderby to ProductID, and $top to 3.
Preview or run the pipeline. The first three products are Chai, Chang, and Aniseed Syrup.

Sample pipeline (Samples project):

odata-input-northwind.hpl
